polynomial_regression_demo

Create and clean data, fit polynomials

2023-05-20, J. Köppern, supported by GPT-4

Example for an end-to-end data science project

Here (and hosted on Streamlit Cloud) you’ll find a Python app (see create_analze_streamlit.py) with a Streamlit UI for approximating (modelling) data with a polynomial. This showcasing app

This project is an end-to-end data science project since it’s a data-driven solution, from the initial problem formulation to the Although the task is fictitious (put polynomials through data points and determine a suitable degree for the model), it corresponds to a real problem from my professional past. The end result is an app which can be deployed on Azure or AWS, e.g.

At the end of a Data Science project, the results are presented, usually to a non-technical audience. This is not part of the present project and so I point out that the end is not yet reached with the deployment of the app.

The app deployment is also followed by monitoring of the app, which is also not done here.

Hint: Terms, such as suitable or goodness of approximation, must be defined quantitatively in order to be used further. This will be done in the following.

Insertion - what’s a polynomial

A polynomial is a mathematical expression consisting of variables and coefficients, combined using addition, subtraction, and multiplication operations. It can be represented as a sum of terms, where each term is a product of a constant coefficient and a variable raised to a non-negative integer power. For example, a quadratic polynomial can be written as \(f(x) = ax^2 + bx + c\), where a, b, and c are coefficients and x is the variable.

Generating synthetic data

The synthetic data is generated using Python by creating a base polynomial function and adding noise and outliers to it. This process involves

To create the synthetic data using Python, I follow these steps:

  1. Define a set of interpolation points (x, y) through which the base polynomial should pass.

  2. Fit a polynomial of the desired degree to these points using the numpy.polyfit function, which returns the polynomial coefficients.
  3. Create a numpy.poly1d object using the obtained coefficients, which represents the base polynomial function.
  4. Generate a set of x-values (x_poly) using numpy.linspace within the desired range.
  5. Calculate the corresponding y-values (y_poly) by evaluating the base polynomial function at the x_poly points.

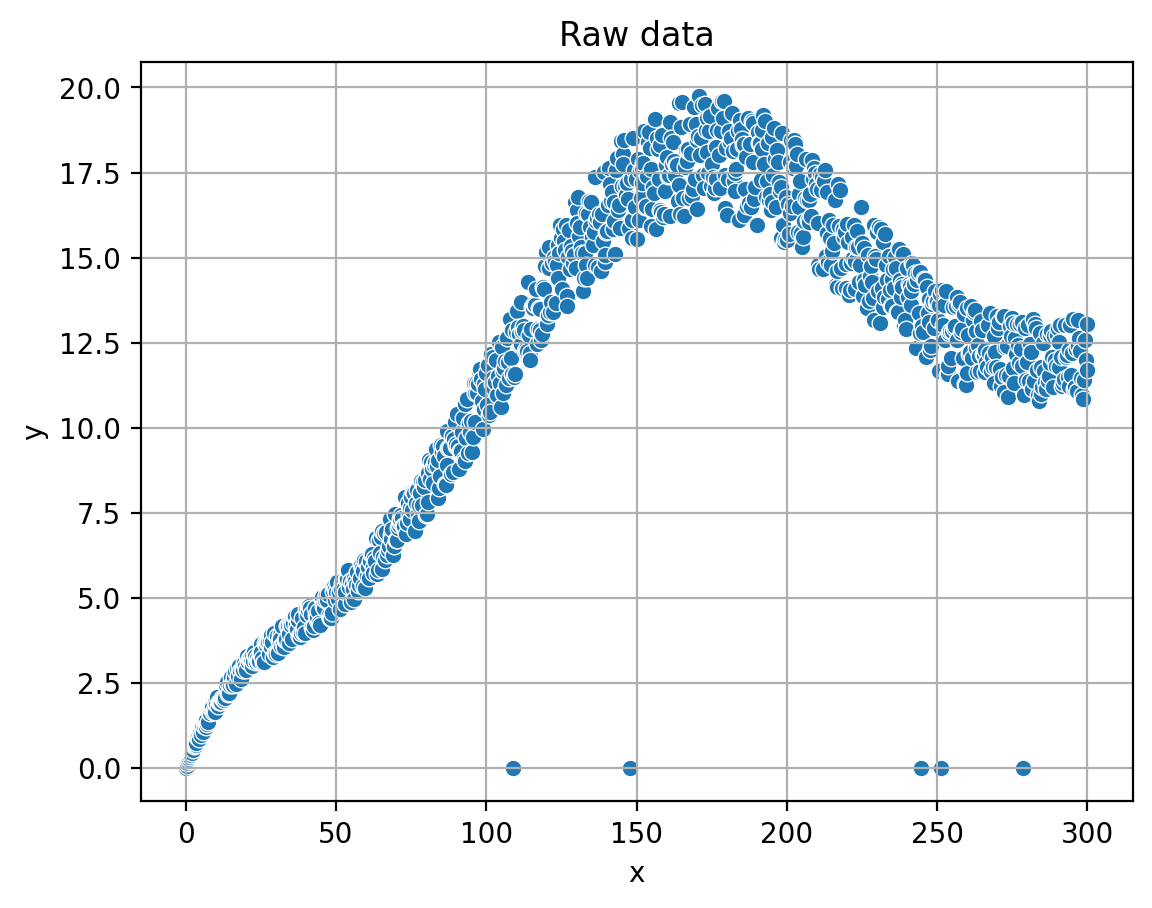

  6. Add noise to the y_poly values by generating random values within a specified range (noise_magnitude) and adding them to the original y_poly values. 7. Introduce outliers by randomly selecting a few indices in the y_poly array and setting their values to a specific outlier value (e.g., 0).
  7. Combine the x_poly and y_poly_with_noise_outliers arrays into a dictionary and create a pandas DataFrame based on it.
  8. Save the generated DataFrame as a CSV file for further use.

The create_data function in the source code implements these steps, and it is called when the user clicks the “Create” button in the app.

Date clean-up: Outlier removal

The Interquartile Range (IQR) cleanup method is used to remove outliers from the synthetic data. The IQR method is a robust technique for identifying and eliminating data points that deviate significantly (see next paragraph) from the overall distribution. By applying this method, we can preprocess the data and improve the accuracy of the polynomial fitting process. The app provides an interactive way to adjust the parameters for outlier removal, allowing users to explore the impact of different settings on the cleaned data.

The idea behind the Interquartile Range (IQR) method is to measure the statistical spread of the data and identify data points that lie outside a certain range. The IQR is calculated as the difference between the 75th percentile (Q3) and the 25th percentile (Q1) of the data. Data points that fall below Q1 - k * IQR or above Q3 + k * IQR, where k is a user-defined multiplier, are considered outliers. Cleaned data in x-y plane This method is robust against the influence of extreme values, as it focuses on the central portion of the data distribution. By removing the identified outliers, we can obtain a cleaner dataset that better represents the underlying structure, which in turn improves the accuracy of the polynomial fitting process.

In the provided source code, the IQR cleanup method is implemented within the outlier_detection_iqr and process_data_in_windows functions. Here’s how it’s done:

The outlier_detection_iqr function takes a DataFrame (df), a column name (column), and a multiplier (k) as input arguments.

  1. It calculates the 25th percentile (Q1) and the 75th percentile (Q3) of the specified column in the DataFrame.
  2. The Interquartile Range (IQR) is computed as the difference between Q3 and Q1.
  3. Lower and upper bounds for outlier detection are calculated as Q1 - k * IQR and Q3 + k * IQR, respectively.
  4. The function returns a filtered DataFrame containing only the data points that lie within the lower and upper bounds.

The process_data_in_windows function is responsible for applying the IQR cleanup method to the data in a sliding window fashion:

  1. It takes a DataFrame (df), a column name (column), a window size, and a multiplier (k) as input arguments.
  2. The function divides the DataFrame into windows of the specified size.
  3. For each window, it calls the outlier_detection_iqr function to remove outliers.
  4. The cleaned windows are concatenated to form a new DataFrame containing the cleaned data.

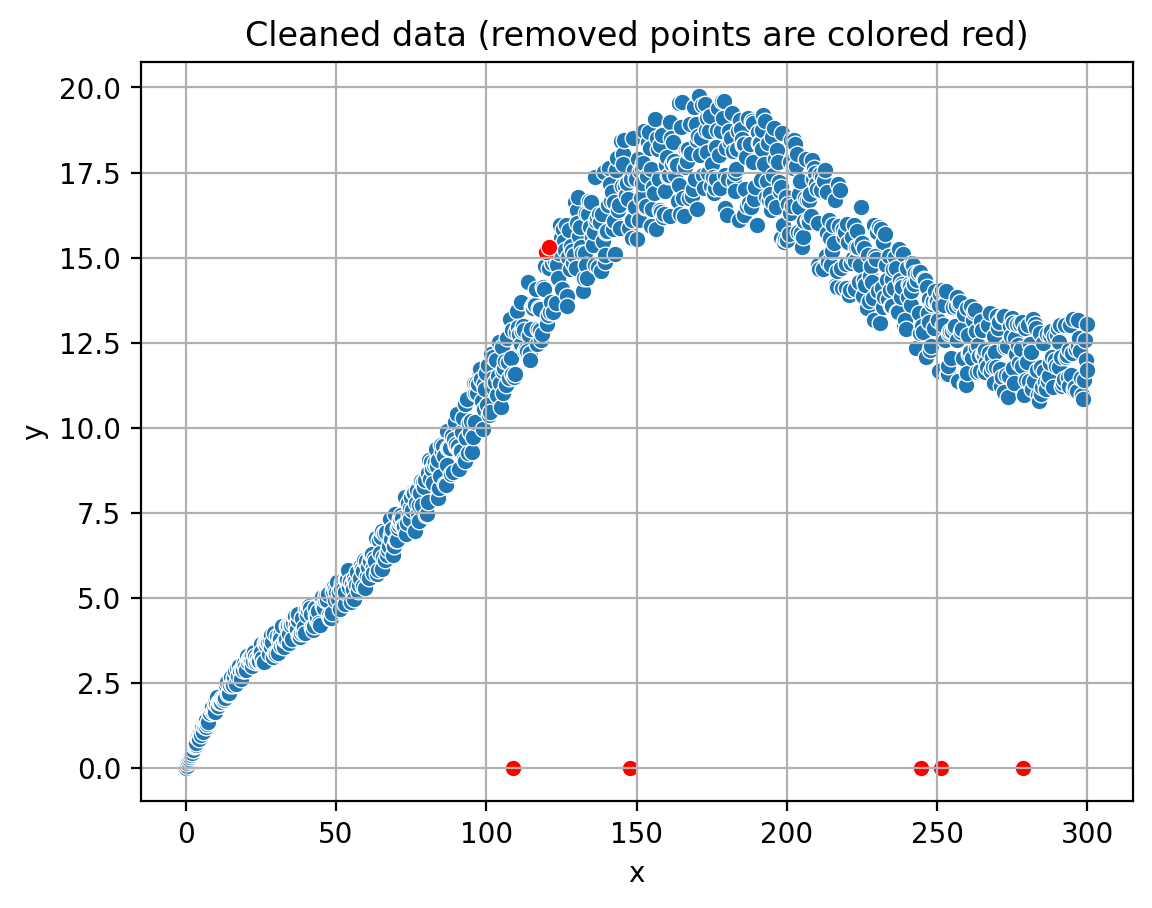

In the app, the IQR cleanup process is triggered when the user clicks the “Remove outliers” button. Users can adjust the window size and multiplier using sliders provided in the app’s interface.

Fitting polynomials

Finding the Best-suited Degree (best is to be defined) In this section, we will discuss the process of fitting polynomials to the cleaned data and evaluating their approximation errors to determine the best-suited polynomial degree. The app fits polynomials of various degrees to the data and calculates the mean squared error for each degree. By comparing the errors, we can identify the optimal polynomial degree that provides the best balance between complexity and accuracy. The app also visualizes the fitted polynomials, allowing users to observe the impact of different polynomial degrees on the data approximation. Polynomial of degree 6 fitted into the cleaned data The concept of polynomial fitting involves finding a polynomial function that best approximates the given data points. This is achieved by minimizing the difference between the actual data points and the corresponding points on the polynomial curve. In our app, we use the numpy.polyfit function to fit polynomials of different degrees to the cleaned data and calculate their coefficients.

The fitting process is implemented in the fit_poly function in the source code, which performs the following steps:

  1. Iterate through a range of polynomial degrees.
  2. For each degree, fit a polynomial to the cleaned data using the numpy.polyfit function.
  3. Create a numpy.poly1d object using the obtained coefficients, representing the fitted polynomial function.
  4. Evaluate the polynomial function at the x-values of the cleaned data to obtain the approximated y-values.
  5. Calculate the mean squared error between the actual y-values and the approximated y-values.
  6. Store the degree and the corresponding mean squared error in a pandas DataFrame.

In the app, the polynomial fitting process is initiated when the user clicks the “Fit polynomial” button. Users can also choose to display the plots of the fitted polynomials by checking the “Insert plots” checkbox.

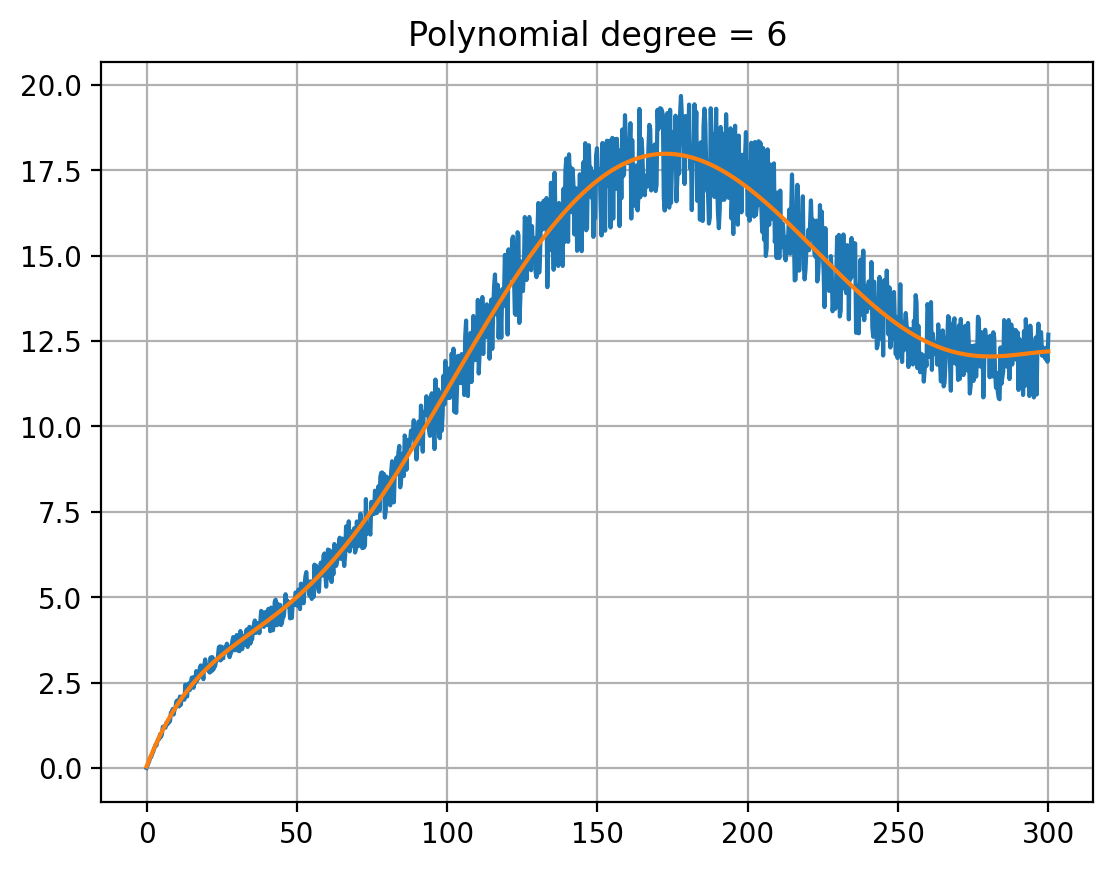

The fitted polynomials and their respective approximation errors are visualized in form of a table by the app, allowing users to analyze the results and determine the optimal (for definition see below) polynomial degree for their data. The complete implementation details can be found in the source code, enabling readers to explore and understand the polynomial fitting process.

Choosing the optimal degree

Choosing the Optimal Degree: Balancing Complexity and Accuracy In this section, we will discuss the importance of selecting the optimal polynomial degree for fitting the cleaned data. It is crucial to define “optimal” or “best” in a quantitative manner, as it helps in making an informed decision based on the trade-offs between complexity and accuracy. In the context of polynomial fitting, optimality can be related to the balance between overfitting and underfitting, the elbow curve of error over degree, and the point where the decrease of the fitting error diminishes over the degree. Mean squared fitting error over the polynomial's degree Overfitting occurs when a polynomial of a high degree fits the data too closely, capturing the noise and outliers in the data. This results in a model that performs well on the training data but poorly on new, unseen data. On the other hand, underfitting occurs when a polynomial of a low degree is unable to capture the underlying structure of the data, leading to a poor approximation.

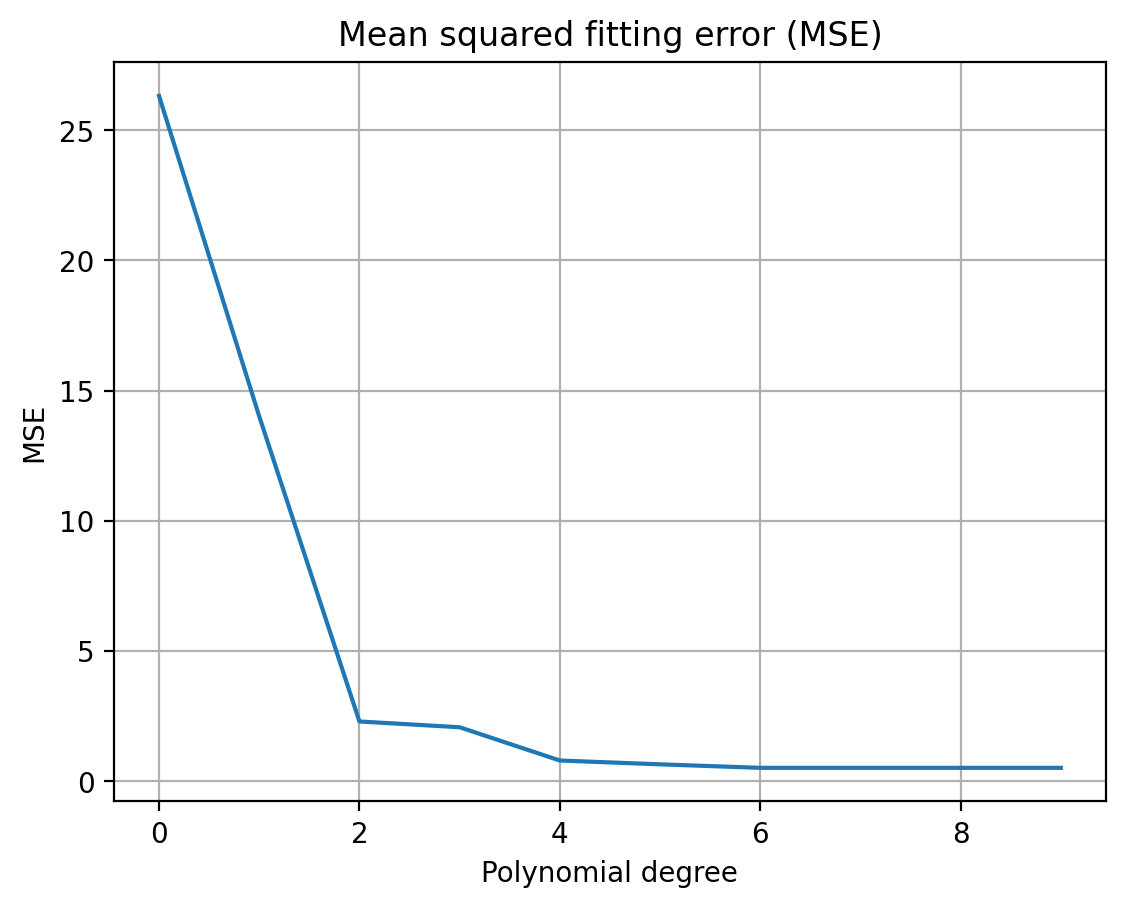

To choose the optimal degree, we can analyze the elbow curve, which is a plot of the fitting error (e.g., mean squared error) against the polynomial degree. As the degree increases, the fitting error generally decreases. However, there is a point where the decrease in fitting error becomes negligible or starts to increase due to overfitting. This point, often referred to as the “elbow point,” can be considered as the optimal degree for the polynomial fitting.

In the app, the elbow curve is visualized, allowing users to observe the relationship between the fitting error and the polynomial degree. By analyzing this curve, users can identify the optimal degree that provides the best balance between complexity and accuracy, ensuring a robust and reliable polynomial fit for the cleaned data.

Deployment as Azure Web Service

Azure Web Service is a cloud-based platform that enables users to build, deploy, and manage web applications and services using Microsoft Azure infrastructure. One app can be deployed for free under the so-called F1 plan.

On the console the steps look something like

az login
az group create --name rg-jk-1 --location westeurope
az appservice plan create --name jk-free-linux --resource-group rg-jk-1 --sku F1 --is-linux
az webapp create --name jk-az-01 --resource-group rg-jk-1 --plan jk-free-linux --runtime "PYTHON|3.9" --deployment-source-url https://github.com/koeppern/polynomial_regression_demo.git --deployment-source-branch main
az webapp config set --resource-group <group-name> --name <app-name> --startup-file "<path/to/custom-startup.json>"

In the startup-file the command python -m streamlit run app.py --server.port 8000 --server.address 0.0.0.0needs to be defines.

az login: This command is used to log in to your Azure account. If you have not installed the Azure CLI, you can download it from the official Azure CLI website. Once installed, open your terminal or command prompt and type az login. This will open a web page where you can enter your Azure credentials.

az group create –name rg-jk-1 –location westeurope: This command creates a new resource group named “rg-jk-1” in the “westeurope” location. A resource group is a logical container for resources that are deployed within an Azure subscription. It helps in organizing and managing resources based on their lifecycle and their relationship to each other.

az appservice plan create –name jk-free-linux –resource-group rg-jk-1 –sku F1 –is-linux: This command creates an App Service plan named “jk-free-linux” in the “rg-jk-1” resource group. The plan uses the “F1” (Free) pricing tier and runs on a Linux-based operating system. An App Service plan defines a set of computing resources for a web app to run, including the operating system, capacity, and features.

az webapp create –name jk-az-01 –resource-group rg-jk-1 –plan jk-free-linux –runtime “PYTHON 3.9” –deployment-source-url https://github.com/koeppern/polynomial_regression_demo.git –deployment-source-branch main: This command creates a web app named “jk-az-01” in the “rg-jk-1” resource group, using the “jk-free-linux” App Service plan. The web app runs on Python 3.9 runtime. Additionally, it sets the deployment source to a GitHub repository containing the Polynomial Regression Demo, and specifies the “main” branch for deployment.

az webapp config set –resource-group --name --startup-file "<path/to/custom-startup.json>": This command sets the startup file for the web app. Replace with the name of your resource group (in this case, "rg-jk-1"), with the name of your web app (in this case, "jk-az-01"), and <path/to/custom-startup.json> with the path to your custom startup file, if needed. The startup file is used to configure the web app and define how it should start.

These steps can be done via the Azure CLI or the web portal.

Deployment in Steamlit Cloud

Streamlit Cloud is a platform that allows users to deploy, share, and collaborate on Streamlit apps for free in the cloud without the need for complex infrastructure setup.

All you need to to is to create a new app on the platform and point it to the App PY file (in my case create_analze_streamlit.py). This depoys the app here.
